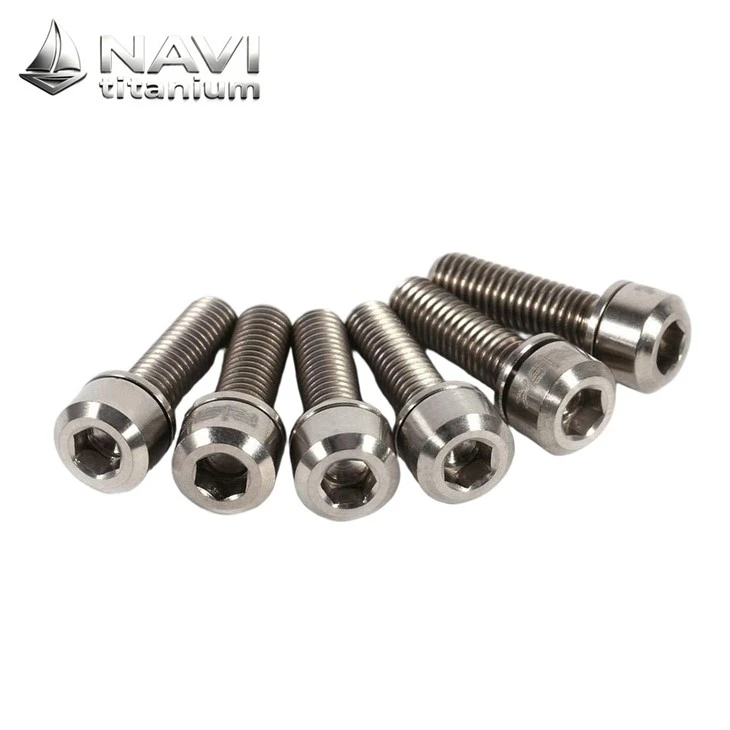

NAVI Titanium ducati titanium bolts replace rust-prone OEM steel with Grade 5 Ti-6Al-4V - 45% lighter, rust-free, and rolled-threaded for the vibration a desmo engine and dry clutch actually produce, with heads pre-drilled for safety wire and Torx or hex drives to match your machine. Built in our own ISO 9001:2015 certified lines since 2008, and configured against Ducati OEM positions across Panigale, Streetfighter, Monster, Multistrada and classic desmoquattro models, with per-heat mill certificates, thread gauge reports and a position-by-position torque card in every kit. Caliper mounts, fork clamps, steering and suspension linkage stay OEM - we will tell you that plainly. Send your model, year and variant, and get a fitment-checked quote within 24 hours.
Solutions of NAVI Titanium
NAVI Titanium applies precision-finishing expertise to lightweight fastening workpieces for electric off-road motorcycles, with attention to alloy selection, machining accuracy, head configuration, load distribution, and assembly compatibility. Ducati titanium bolts is commonly considered where high specific strength and corrosion resistance are important.
Quick Fit Check
Ducati titanium bolts tend to be specific about what they want and equally specific about what they will not touch. Here is exactly where titanium hardware makes sense on a Ducati, and where you should keep the factory fastener.
1. Hardware that survives coastal air, winter salt and outdoor storage
Ducati bodywork and case fasteners are commonly black-oxide or zinc-plated steel, and they begin to bloom with rust after a single wet season - most visibly at the belly pan, radiator shrouds and swingarm plates. Titanium forms a self-repairing passive oxide layer, so there is no plating to chip, no rust to seize into the case, and no stripped socket head at the next service.
2. Weight reduction in positions where it matters most
Grade 5 titanium runs at 4.43 g/cm³ against steel at roughly 7.85 g/cm³, so replacement hardware is about 43–45% lighter by volume. On a Ducati, the highest-value positions are high and central: desmodromic valve covers, engine covers, bodywork sets and subframe-area fittings. Ducati itself treats titanium as a factory-grade material - the Multistrada V4 RS ships with a titanium rear subframe ex-works - which is the clearest possible statement that the material belongs on this platform.
3. Track and race preparation that requires safety wiring
Most track-day and race technical regulations require safety wire on brake caliper, disc, banjo, drain plug and oil filler fasteners. We machine heads with pre-drilled wire holes at 0.8 / 1.0 / 1.2 mm and lighten the heads where the application allows, so the bolt arrives ready to wire rather than needing a bench drill and a prayer.
4. Dry clutch and high-vibration positions
Dry-clutch Ducatis - the Panigale V4 RS, Multistrada V4 RS, and classics such as the 916, 996, 998 and Monster S4R - transmit more vibration and radiated heat to their covers than wet-clutch machines. Cover fasteners in those positions benefit most from titanium's fatigue behaviour and its resistance to corrosion-driven seizure.
5. Desmodromic valve cover service work
Desmo valve trains are serviced far more often than the average engine, which means the cover fasteners come out and go back in repeatedly.
Titanium with a proper anti-seize treatment keeps its thread form and socket geometry across dozens of service cycles, where plated steel tends to corrode at the shank and round off at the head.
6. Detail-led road bikes and show builds

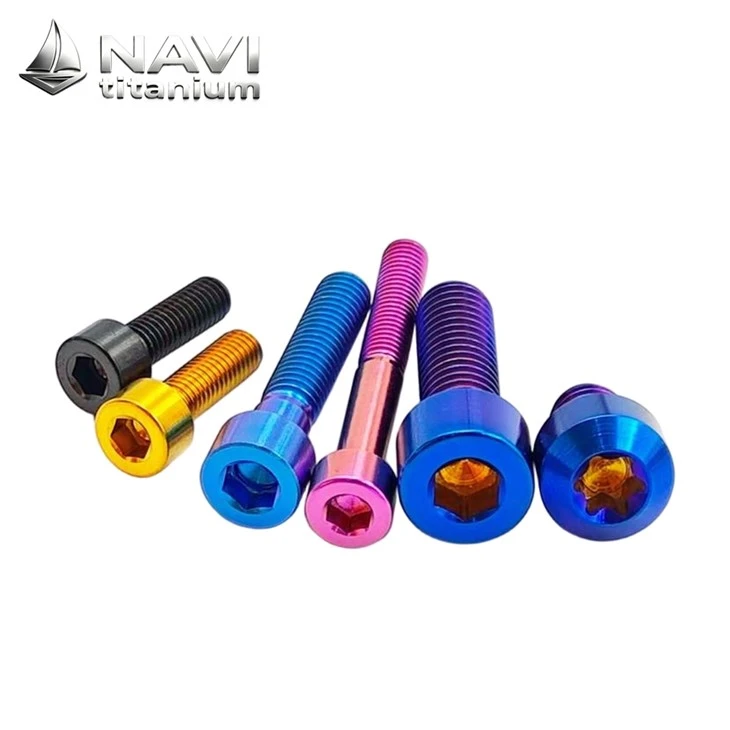

Raw titanium, PVD black, gold, blue and rainbow finishes hold their appearance far better than anodised aluminium, which fades under UV and workshop cleaners. Matching your finish to the frame or rearsets is straightforward.
7. Distributors who need a repeatable product line
Consistent heat lots, repeatable thread gauging and per-batch documentation make Ducati titanium kits viable as a stocked SKU family rather than a one-off custom run - model-specific parts lists included.
Purchasing guide
Quality control (QC)
All NAVI Titanium ducati titanium bolts for electric off-road motorcycles come with complete, auditable material documentation, fully aligned with premium motorcycle supply chain compliance standards. Procurement teams can verify every critical performance parameter before batch order confirmation, eliminating incoming re-inspection costs and qualification risks.
Manufacturing Process
Alloy Bar Selection
1
>>
CNC Turning
2
>>
Head Machining
3
>>
Thread Cutting
4
>>
Deburring & Cleaning
5
>>
Marking & Packing
6
What Is in the Kit
Every kit is configured against Ducati OEM part positions, not generic sizes, and is available in raw titanium, PVD black, gold, blue or rainbow finish.
| Kit Variant |
Typical Contents
|
Best For
|
| Desmodromic Valve Cover Kit | M5 / M6 low-profile socket head screws (both cylinder banks), with sealing washer provisions | Valve clearance and belt / chain service hardware on V4 and L-twin desmo engines |
| Dry Clutch Cover Kit | M5 / M6 drilled-head screws for the clutch cover and spring posts | Panigale V4 RS, Multistrada V4 RS, 916–998, Monster S4R, Hypermotard |
| Wet Clutch & Engine Cover Kit | M6 socket head cap screws for clutch, ignition, water pump and case covers | Monster, Multistrada, Supersport, Scrambler, Panigale V2 |
| Bodywork & Fairing Kit | Torx and hex screws, low-profile flange heads to clear panels and radiators | Tank covers, fairing panels, belly pan, tail, seat unit, fender |
| Brake & Clutch Reservoir Kit | M4 / M5 reservoir cap screws | Brembo and Ducati Performance reservoir caps |
| Banjo Bolt & Bleed Nipple Kit | Front and rear banjo bolts plus bleed nipples, to matched OEM seat form | Track prep, hose replacement, fluid service |
| Brake Disc Mount Kit | M8 taper-head disc bolts, front and rear, safety-wire option | Disc replacement on two-piece and floating discs |
| Sprocket Carrier Nut Kit | 12-point self-locking carrier nuts | Rear wheel and sprocket service |
| Chassis & Subframe Kit | M6 / M8 flange and socket head fasteners | Swingarm plate, subframe, tail, rearsets, footpeg hangers |
| Track / Race Kit | Safety-drilled set covering disc, caliper-adjacent, banjo, oil filler and drain positions where permitted | Track-day and race preparation |
| Custom & Private-Label Kit | Built to your parts list, quantities and finish | Ducati specialists, race teams, distributors |
Every kit ships with a printed contents card listing position, thread size, length, drive type and torque value per fastener - plus a note identifying any position we recommend keeping as OEM.
Fitment - Confirm Before You Order
Kits are configured against Ducati OEM part positions, family by family. Current coverage:
| Model Family |
Years Covered
|
Notes
|
| Panigale V4 / V4 S / V4 R | 2018 – 2024 first generation; 2025+ new generation | Bodywork and tank mounting changed between generations; single-sided swingarm through 2024 |
| Panigale V2 | 2020 – 2024; 2025+ new generation | Separate kit variant per generation |
| Streetfighter V4 / V4 S | 2020 – current | Shares major positions with Panigale V4 |
| Streetfighter V2 | 2022 – current | |
| Monster 821 / 1200 / 797 / 1100 | to 2021 | Air-cooled and liquid-cooled generations differ |
| Monster 937 / 950 / 900 | 2021 – current | |
| New Monster (890 V2) | 2026+ | New generation fastener set |
| Multistrada V4 / V4 S / Pikes Peak / V4 RS | 2021 – current | V4 RS uses a titanium rear subframe ex-works |
| Multistrada V2 / V2 S | 2022 – current | |
| Diavel V4 / XDiavel | 2023+ / 2016 – current | |
| Hypermotard 950 / 698 Mono | 2019 – current / 2024+ | |
| DesertX | 2022 – current | |
| Supersport 950 | 2021 – current | |
| Scrambler 800 / 1100 | 2015 – current | |
| 851 / 888 / 748 / 916 / 996 / 998 / 999 | 1988 – 2006 | Classic desmoquattro and testastretta fastener sets |
| 848 / 1098 / 1198 | 2007 – 2014 |
Fitment verification: send your exact model, model year, variant (base / S / R / RS / Pikes Peak) and a photo of the positions you want to replace. We confirm thread size, pitch and length against your machine before the order is released, and we will tell you outright if a position should stay with the OEM fastener. If we get a fitment wrong, the affected fasteners are replaced at our cost.
FAQ
Q: Will titanium bolts seize in my Ducati's aluminium or magnesium engine cases?
+
-
A: Titanium is more noble than aluminium and magnesium, so the galvanic concern is real - but in practice galling during assembly is the bigger risk. With the correct anti-seize compound on every thread, titanium hardware releases cleanly years later, including after heat cycling.
Q: Can I replace the Brembo radial caliper mounting bolts with titanium?
+
-
A: We do not recommend it, and we will not sell a titanium substitute for that position. Caliper mounting is a safety-critical, high-load joint with a Ducati-specified grade and torque. Keep the OEM fastener unless a qualified engineer has approved the substitution for your exact application.
Q: Do you supply safety-wired bolts for track use?
+
-
A: Yes. Heads can be pre-drilled at 0.8, 1.0 or 1.2 mm, drilled on a fixture so the holes align across a set. Tell us your technical regulation and we will supply the kit accordingly.
Q: My bike is a dry-clutch model - which kit fits best?
+
-
A: Dry-clutch models benefit most from the Dry Clutch Cover Kit plus the Desmodromic Valve Cover Kit. The combination covers the two highest-vibration, highest-heat positions that also see the most service work.
Q: Will titanium hardware affect my Ducati warranty?
+
-
A: Replacing non-structural cosmetic and cover fasteners with correct-grade equivalents is a common owner modification, but warranty rules vary by market and dealer. If a claim is a concern, ask your dealer before fitting, and keep the original fasteners so the machine can be returned to standard.
