Cathodic protection is a proven corrosion-control technology used to extend the service life of buried pipelines, storage tanks, steel structures, and other metal facilities. In impressed current cathodic protection (ICCP) systems, an external current is applied to the protected structure to reduce electrochemical corrosion. NAVI Titanium supplies MMO titanium anodes featuring a titanium substrate and mixed metal oxide (MMO) coating. They offer stable electrochemical performance, excellent corrosion resistance, low anode consumption, and long service life, making them suitable for demanding long-term cathodic protection applications. Our product range includes MMO mesh, tubular, wire, strip, linear, and deep-well anodes. Anode dimensions, coating specifications, cable configuration, and assembly design can be customized according to the protection area, soil conditions, required current output, installation method, and target service life.
Main Cathodic Protection Anode Products
MMO mesh anodes are manufactured by welding MMO-coated titanium strips or anode elements with titanium connecting components to form a mesh structure. The distributed design provides relatively uniform current output across the protected area, helping reduce the risk of localized under-protection or excessive current concentration.
MMO mesh anodes are particularly suitable for external cathodic protection of storage tank bottoms, where a large and relatively uniform protection area needs to be covered. Their low anode consumption and long operating life make them a practical solution for new tank construction as well as cathodic protection upgrades.
The mesh configuration can also be engineered according to the tank diameter, protection area, required current, and installation layout.
2. MMO Tubular Anode
MMO tubular anodes consist of a titanium substrate with an MMO coating designed for electrochemical service. Their tubular structure provides good mechanical strength and rigidity, making them suitable for buried or deep-well installation where mechanical stability is important.
Individual tubular anodes can be used independently or assembled into an anode string. They are commonly used in deep-well anode groundbeds, buried pipeline cathodic protection systems, industrial facilities, and other ICCP applications. The anode length, diameter, coating specification, cable connection, and assembly configuration can be adjusted according to the required current output and installation conditions.
MMO wire anodes combine a titanium wire substrate with an MMO coating. Their small diameter and flexibility make them easy to bend, route, and install around irregular structures or in areas with limited installation space.
Compared with rigid anode structures, wire anodes can follow curved or irregular surfaces more easily while providing distributed current release. They are suitable for localized protection of storage tank bottoms, irregular steel components, confined spaces, and supplementary cathodic protection applications. Their lightweight construction also simplifies transportation and on-site handling.
4. Titanium Anode Strip / Conductive Titanium Strip
Titanium anode strips are titanium-based strip products coated with an MMO layer. Depending on the system design, they can function as active anode elements or be integrated into a larger mesh anode assembly.
The strip structure provides good flexibility and convenient welding with titanium connectors. It is particularly useful where a distributed anode layout is required, such as storage tank bottom protection and custom mesh anode systems.
Strip dimensions, coating specifications, connection points, and assembly configuration can be customized according to project drawings.
MMO/Ti linear anodes are continuous anode systems designed for long-distance installation. The linear configuration allows the anode to be laid along the protected structure, providing distributed current over an extended distance.
They are well suited to long-distance buried oil and gas pipelines, water pipelines, and other linear underground structures where conventional point anodes may result in uneven current distribution. The installation length and anode configuration can be designed according to pipeline length, coating condition, soil resistivity, required protection current, and spacing requirements.
6. Deep-Well Anode Assembly
Deep-well anode systems are assembled from multiple MMO tubular anodes installed at considerable depth within a dedicated groundbed. This configuration can provide a large current-dispersion area while reducing the space required at ground level.
Deep-well systems are especially suitable for high-resistivity soil, congested industrial sites, long-distance pipelines, plant-wide pipeline networks, and locations where surface installation space is limited.
The number and arrangement of tubular anodes can be selected according to required output current, soil conditions, design life, and groundbed configuration.
Cathodic Protection Anode Product Comparison
|
Product Name |
Substrate |
Coating |
Main Specifications |
Key Features |
Typical Applications |
Design Life* |
|---|---|---|---|---|---|---|
|
MMO Mesh Anode |
Titanium strip |
Mixed Metal Oxide (MMO) |
Custom width; current loading: 50–100 mA/m |
Uniform current distribution; minimizes corrosion interference |
External cathodic protection of storage tank bottoms |
≥20 years |
|
MMO Tubular Anode |
Titanium tube |
MMO coating |
Diameter: 25/32/50 mm; length: 500–1,500 mm; maximum operating current per anode: 2.5 A |
High mechanical strength; impact resistance |
Deep-well anode groundbeds; buried steel structures |
≥20 years |
|
MMO Wire Anode |
Titanium wire |
MMO coating |
Wire diameter: 2.0–4.0 mm; current loading: 20–40 mA/m |
Flexible; can be bent on-site |
Localized tank-bottom protection; irregular steel structures |
≥20 years |
|
MMO Anode Strip / Titanium Conductive Strip |
Titanium strip |
MMO coating |
Thickness: 0.6–1.5 mm; width: 20–100 mm |
Good weldability; flexible structure |
Main component of mesh anode systems |
≥20 years |
|
MMO/Ti Linear Anode |
Titanium strip |
MMO coating |
Custom length; current loading: 30–80 mA/m |
Continuous, distributed current output |
Long-distance buried oil and gas pipelines |
≥20 years |
|
Deep-Well Anode Assembly |
MMO tubular anode assembly |
MMO coating |
Complete assembly including anodes, backfill, and cables; well depth: 15–80 m |
Wide current-dispersion area; reduced stray-current interference when properly designed |
High-resistivity soil; industrial pipeline networks |
≥20 years |
*Actual service life depends on coating loading, operating current density, electrolyte conditions, soil resistivity, duty cycle, and system design.
The parameters can be customized according to your requirements.
Key Advantages of MMO Titanium Anodes
High Electrochemical Performance
MMO coatings provide high electrocatalytic activity, stable current output, and low anode consumption.
Excellent Corrosion Resistance
Titanium substrates offer excellent resistance to corrosion in soil, fresh water, and other suitable electrolytes.
Multiple Configurations
Available in mesh, tubular, wire, strip, linear, and deep-well configurations for different installation requirements.
Stable Current Distribution
Proper anode design and layout help provide uniform current distribution and reliable corrosion protection.
Customized Specifications
Anode dimensions, MMO coating, coating loading, cable length, and connection components can be customized.
Long Service Life
Low consumption and durable materials help reduce anode replacement and long-term maintenance requirements.
Applications
MMO titanium anodes are widely used for storage tank bottoms, buried oil and gas pipelines, water pipelines, port and marine steel structures, power plants, substations, underground pipeline networks, bridges, and hydraulic steel structures. Different anode configurations can be selected according to the protected structure, protection area, soil or electrolyte conditions, required current output, installation method, and expected service life.

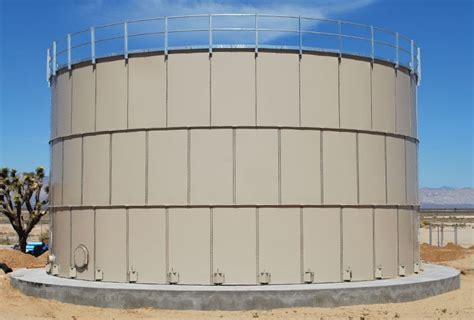

Storage Tanks

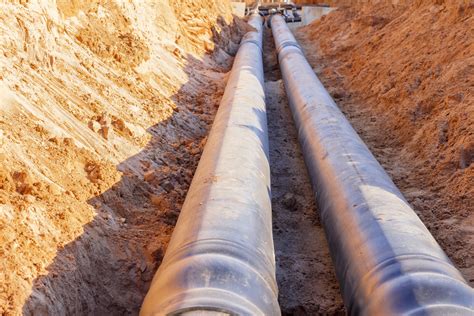

Buried Pipelines
Marine Structures

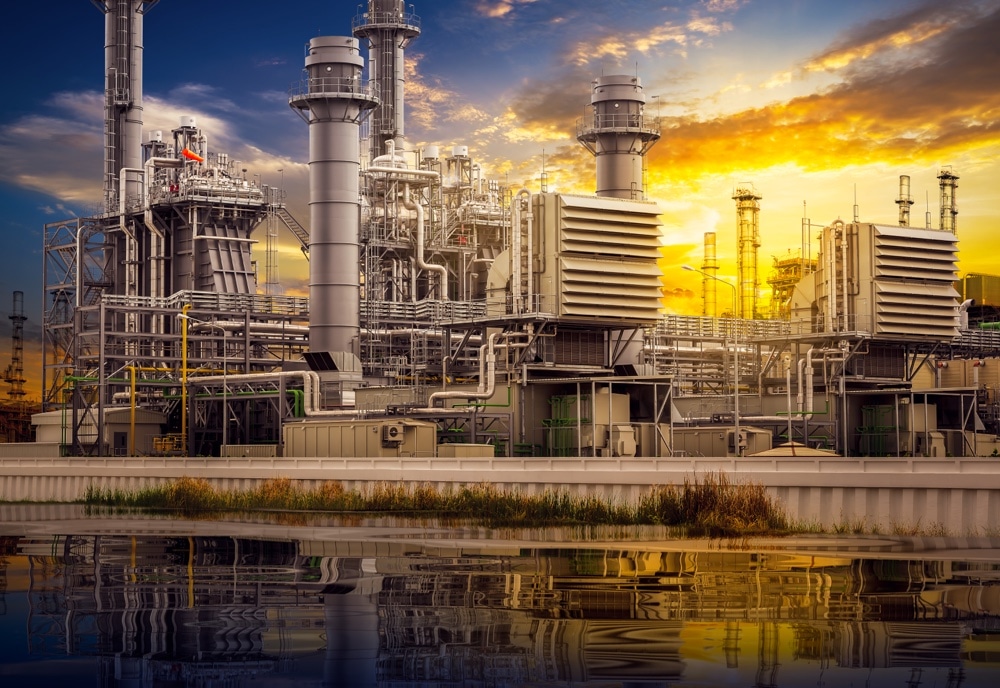

Power Facilities
The appropriate anode configuration depends on the protected structure, electrolyte conditions, required protection current, installation method, and expected operating life.
Customization and Technical Support
- NAVI Titanium provides customized MMO titanium anodes for impressed current cathodic protection projects. Our technical team can assist with anode selection, specification review, drawing confirmation, current-output calculations, and assembly configuration based on project conditions.
- Depending on the application, we can customize the anode size, substrate dimensions, MMO coating, coating loading, cable length, terminal configuration, titanium connectors, and complete anode assemblies. Products can be manufactured according to customer drawings or technical specifications, with production and inspection records available for project documentation and quality control.
- For an accurate recommendation, customers can provide information such as protected structure type, protection area, required current, soil resistivity or electrolyte conditions, installation depth, target service life, anode arrangement, and project drawings.
Contact NAVI Titanium to discuss your cathodic protection requirements and receive a suitable MMO titanium anode solution and quotation.
